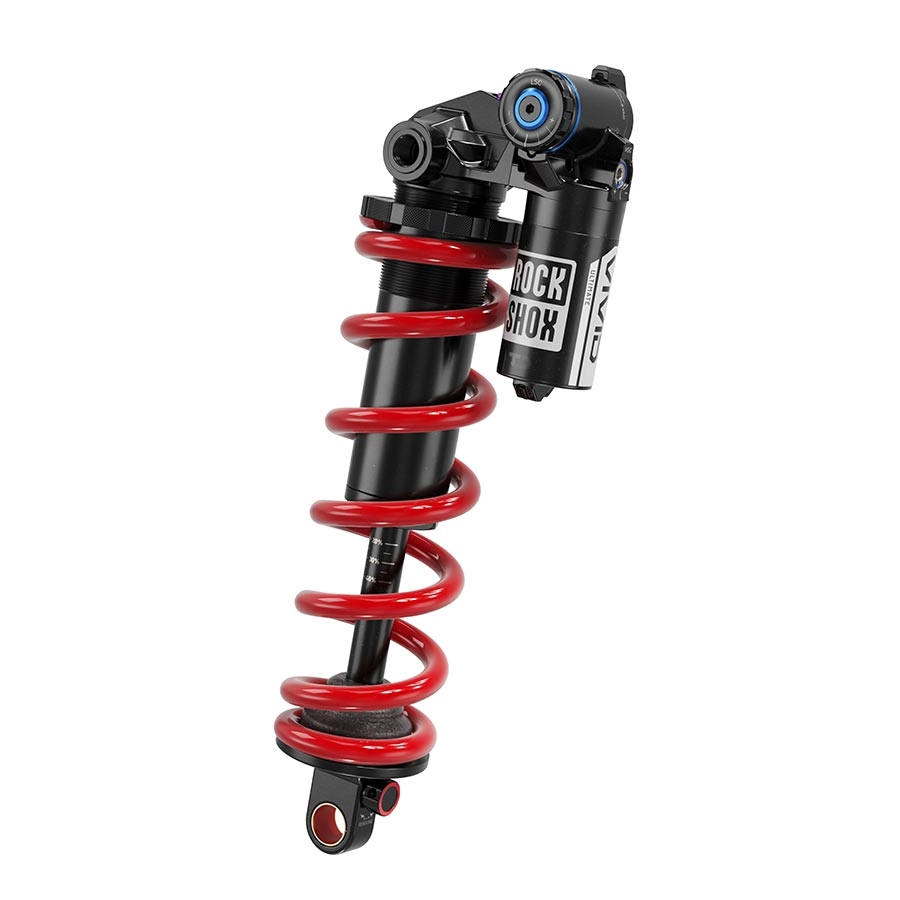

Vivid Coil Ultimate is unmatched in downhill performance and tunability. Easily dial in the perfect ride feel with the TouchDown RC2T position-sensitive damper. TouchDown RC2T damper features sensitivity and suppleness off the top while remaining stable and supportive throughout its travel. Position-sensitive damper offers reliable performance and tunability with energetic responsiveness at every position in the travel. Rebound adjustment, independent High and Low Speed Compression adjustment, and an easy-to-adjust Threshold Lever for added pedaling efficiency. Adjustable Hydraulic Bottom Out has five compression settings at your fingertips to customize the amount of bottom-out resistance in the last 20% of travel. Soft, stroke-specific bottom-out bumper accommodates the range of stroke lengths, allowing for full travel. SRAM Model ID: RS-VIVID COIL-ULTIMATE-C1| Body Eyelet | Trunnion |
| Frame Compatibility | Transition Relay/Patrol 2022 |
| Primary Color | Black |
| Spring Type | Coil |
| Spring Adjustments | Preload |
| Damping | RC2T Adj. Hydraulic Bottom Out |
| Damping Adjustments | External rebound 2 position (open/firm) HS&LS compression Hydraulic Bottom Out |
| Eye-To-Eye | 205x60 |
| Shaft Eyelet | Standard |
| Default Settings | Reb25/Comp26 Adj Hydraulic Bottom Out Lockout 2 |
